Diagnostic System Integrated Wall System Green Series™ 777 GS 777 Wall Transformer by Hillrom/Welch Allyn ID 777-PM3WCX-US

52-4-7780

Stock Est. Shipping Date: 11th June 2025

Diagnostic System Integrated Wall System Green Series™ 777 GS 777 Wall Transformer
Sold by: EA OF 1

 Reviews
Better together

  • Total: $0.00

Rally #52-4-7780
Baxter / Hillrom / Welch Allyn #777-PM3WCX-US

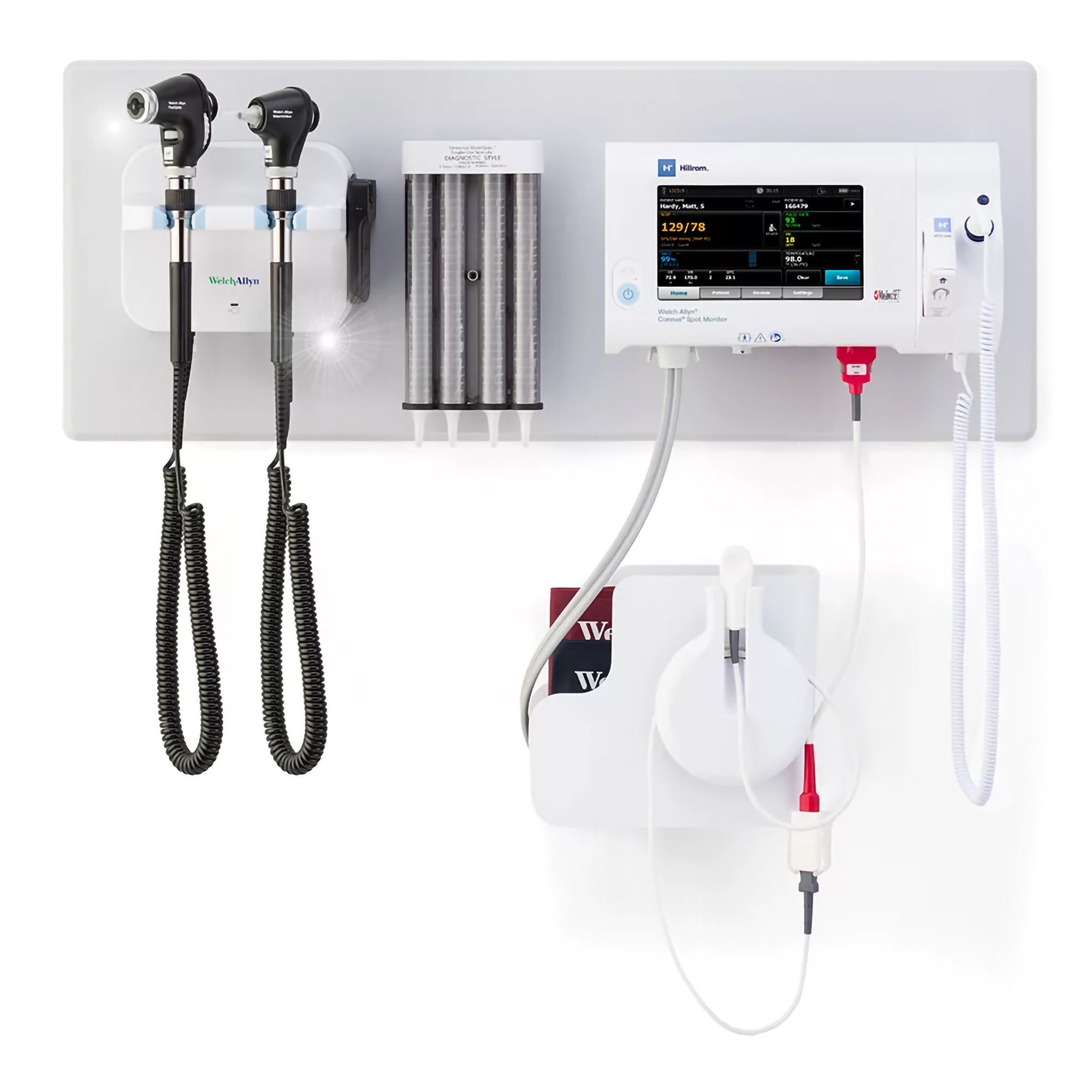

Welch Allyn Green Series 777 Integrated Wall System (1/EA)

Welch Allyn Green Series 777 Integrated Wall System for Connex Spot Monitor (CSM) or Spot Vital Signs 4400 Device (Spot) with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Ear Specula Dispenser (CSM and Spot sold separately)

Baxter Trade-Up Rebate Promotion

Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.

Offer Valid Through Dec 31, 2025

See Details Below

Content Features (Expandable):
► Green Series Integrated Wall System
  • Works with all Welch Allyn otoscope, ophthalmoscope and retinoscope models
  • Help reduce facility cost with a more energy-efficient product
  • No on/off switch helps with infection control
► PanOptic Plus LED Ophthalmoscope
  • 20X larger viewing area when compared to a standard or pocket ophthalmoscope
  • Long-lasting LED illumination reduces the need for frequent lamp replacement
  • Quick Eye alignment lights on the patient side help you direct patient gaze
  • Compatible with existing Welch Allyn 3.5 V power handles and wall transformers
  • The iExaminer Pro System can be add on to support digital image capture during exams.
► MacroView Plus LED Otoscope for iExaminer
  • Focus-free design
  • Long-lasting LED illumination
  • Experience brighter views when paired with LumiView Clear Single-Use Ear Specula
  • MacroView Plus otoscope models are digitally-capable, for capturing and sharing images of the ear
  • Compatible with existing Welch Allyn 3.5 V power handles
► Kleenspec Ear Specula Dispenser
  • Designed for 524-Series Disposable Ear Specula Tips
  • Sturdy in Build
  • Wall-Mounted Dispenser
► Connex Spot Monitor (Sold Separately)
  • Fast and Accurate Measurements: Measures blood pressure in 15 seconds with SureBP, supports BP averaging, and includes options for SureTemp Plus, Braun ThermoScan, and various SpO₂ technologies.
  • Advanced Clinical Tools: Supports respiration rate monitoring (Masimo RRp), Early Warning Scores, and customizable documentation for vitals and patient observations.
  • Flexible Connectivity: Integrates with EMRs via WiFi, Ethernet, Bluetooth, or BLE; supports height, weight, and BMI input from leading medical scales.
  • Secure and Workflow-Friendly Design: Features single sign-on (Imprivata-ready), encrypted data security (DoD-compliant), and versatile mounting options for mobile or wall use.
► Spot Vital Signs 4400 Device (Sold Separately)
  • Fast and Accurate Vitals: Measures blood pressure in 15 seconds with SureBP and enhances hypertension detection with BP averaging.
  • Versatile Measurement Options: Includes SureTemp Plus thermometry and optional Nonin SpO₂ technology.
  • Streamlined Workflow: Features a 7" color touchscreen and supports documentation of patient observations like respiration rate and BMI.
  • EMR Integration: Connects to electronic medical records to reduce documentation errors and improve care coordination.

The Welch Allyn Green Series 777 Integrated Wall Systems and Transformers offer a variety of essential medical diagnostic tools, including ophthalmoscopes, otoscopes, blood pressure devices, and thermometers. With options for wide-view or standard scopes and digital or manual blood pressure devices, you can customize the system to meet your specific needs. Upgrade to new, improved scopes for better visibility and efficiency. This system helps streamline your workflow and collect reliable patient data in an energy-efficient manner.

For additional information on individual products, use the links below:

Welch Allyn Green Series 777 Wall Transformer
PanOptic Plus LED Ophthalmoscope
MacroView Plus LED Otoscope for iExaminer
Kleenspec Ear Specula Dispenser
Connex Spot Monitor (Sold Separately)
Spot Vital Signs 4400 Device (Sold Separately)

Important Notes:
  • Restricted Product: Rx Only - Current Valid Medical License Required.
  • This product is non-returnable. Please verify your ordering information before making a purchase.
  • Product ID numbers are for reference only and may not reflect the exact components in this configuration.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

×
Rally #52-4-7780
Manufacturer #777-PM3WCX-US
GTIN00732094346961
BrandGreen Series™ 777
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationIntegrated Wall System
Blood Pressure MeasurementConnex Spot Monitor / 4400 Vital Signs Device (Sold Separately)
Dispenser TypeEarSpecula Dispenser
Instrument TypeGS 777 Wall Transformer
Mounting TypeWall Board
OphthalmoscopeLED PanOptic Plus with Quick Eye Alignment
OtoscopeLED MacroView Plus, for iExaminer
WarrantyOne Year Warranty

Rally #45-1-1015
Manufacturer #77710
GTIN00732094136678
BrandGreen Series™ 777
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationWall Transformer
UNSPSC Code42182005
WarrantyFive Year Warranty
Electrical Power SupplyAC Input Power: 100–240V, 50–60 Hz, 0.16A max
DC Output Power: 5V, 1.4A
TransformerDC Input Power: 5V, 1A
DC Output Power: 5V, 0.5A
Operating Temperature Limitation59 °F (15 °C) - 104 °F (40 °C)
Operating Humidity Limitation15% - 95%
Operating Atmospheric Pressure Limitation700 hPa - 1060 hPa
Transport/Storage Temperature Limitation-4 °F (-20 °C) - 122 °F (50 °C)
Transport/Storage Humidity Limitation15% - 95%
Transport/Storage Atmospheric Pressure Limitation700 hPa - 1060 hPa

Rally #52-4-1183
Manufacturer #118-3-US
GTIN00732094347135
BrandWelch Allyn
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationOphthalmoscope
Power Source3.5 V Power (Power Handle Not Included)
TypePanOptic Plus
QuickEye Alignment TechnologyYes
Dimensions8 cm x 4.5 cm x 7.5 cm (Height x Width x Depth)
Weight130 g
AperturesSmall, Large, Red Free, Slit, Fixation target, Cobalt Blue
Diopter Range-20 to +25 D
Diopter Steps-20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25
Crossed-linear PolarizersYes
Lamp TypeSureColor LED
Lamp Warranty7 Year Warranty
Lamp Life80+ years (typical)
ColorColor rendering index (CRI): 95 typical; R9: 85 typical
Color temperature: 2700K - 3500K
Field of View20°
UNSPSC Code42182005
WarrantyFive Year Warranty

Rally #45-1-2383
Manufacturer #238-3
GTIN00732094320763
BrandWelch Allyn MacroView
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationOtoscope Head
Power Source3.5 V
TypeMacroView Plus
UNSPSC Code42182005
IExaminer Digital-ReadyYes
Warranty5 Year
Height x Width x Depth7 cm h x 4.5 cm w x 5.5 cm d
Weight115 grams
Sealed Pneumatic OtoscopyYes
Illumination TypeRing Fiber Optics
Lamp Size3.5 V LED Lamp
Lamp TypeSureColor LED
Lamp LifeRated 60+ years based on typical use
Field of view~3 times that of a single-lens otoscope, like the standard-style 250-2.
Magnification~5X
Total Light Output5200 lux; 2.5 times brighter than traditional halogen scopes.
ColorColor rendering index (CRI): 95 typical;
R9: 90 typical;
Color Temperature: 3400K - 4500K
LED Warranty7 years

Rally #45-1-1013
Manufacturer #52400
GTIN00732094144208
BrandWelch Allyn
ManufacturerBaxter / Hillrom / Welch Allyn
Country of OriginUnknown
ApplicationSpecula Dispenser
UNSPSC Code42182011
WarrantyOne Year Warranty

For detailed specifications of the Connex Spot Monitor and the Spot Vital Signs 4400 Device (each sold separately), please refer to their individual product links above, as they feature different configurations and are sold separately.


×
Configurations
Configurations

Note: Wall Board and 777 Wall Transformer included for all configurations display here.

You can find additional information on all configurations below:

Configuration Sets.

Available Configuration Links:

777-PM3WAS-US
777-PM3WAX-US
777-PM3WCX-US
777-PM3WXS-US
777-PM3WXX-US
777-SM2WAX
777-SM2WXX

×
Accessories and Parts
02893-100Probe Well Kit, Oral, 9', Blue. Includes: probe, probe well
104713Welch Allyn Power Cable; Twin USB Connectors; 8 ft/2.4 m
118-ECWelch Allyn PanOptic Basic and Plus Eye Cup (set of 5)
11840-IEX-USiExaminer SmartBracket Accessory
11840-SCiExaminer SmartClips (pack of 2)
11840-TSTiExaminer Resolution Test Card
21504Insufflation Bulb with Black Distal Tip
24320SofSeal Specula Tips, Small, 480-Pack
24400-UMacroView and Diagnostic Otoscope Reusable Ear Specula Set; 2.5mm, 3mm, 4mm, 5mm; Qty. 4
3400-200-6WMobile Stand Mounting Kit Probp3400
3400-925-6WProBP3400 USB Cable 8 ft
3400-926-6WProBP3400 USB Cable 1.5 ft
4600-100-6WPower Supply Mounting Kit
4600-61-6WMobile Stand with Mounting Kit ProBP3400
4701-62Wall Mount with Basket (Spot Vital Signs LXi Device)
52400KleenSpec Disposable Ear-Specula Dispenser for 524-Series Ear Specula, 10-Pack
52432-CLR-1LumiView 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 6800-Pack
52434-CLR-1LumiView 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 6800-Pack
52432-UKleenSpec 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 8,500-Pack
52434-UKleenSpec 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 8,500-Pack
527004.0mm KleenSpec Disposable Ear Specula with Instrumentation Slot, 192-Pack
728041AC Blade FRIWO Power Supple, US BLUE
7670-12767 Wall Systems Rolling Mobile Stand.
767003.5V Locking Collar Accessory; Qty. 2
772221Power Supply ,5V,1.4A,USB-A
777-LH3.5V Head Locking Hardware with Set Screw
PWCD-6WT-BProBP Mobile Stand Cord Assy N. AMERICA

×
