Rally #52-4-7770
Baxter / Hillrom / Welch Allyn #777-PM3WXS-US

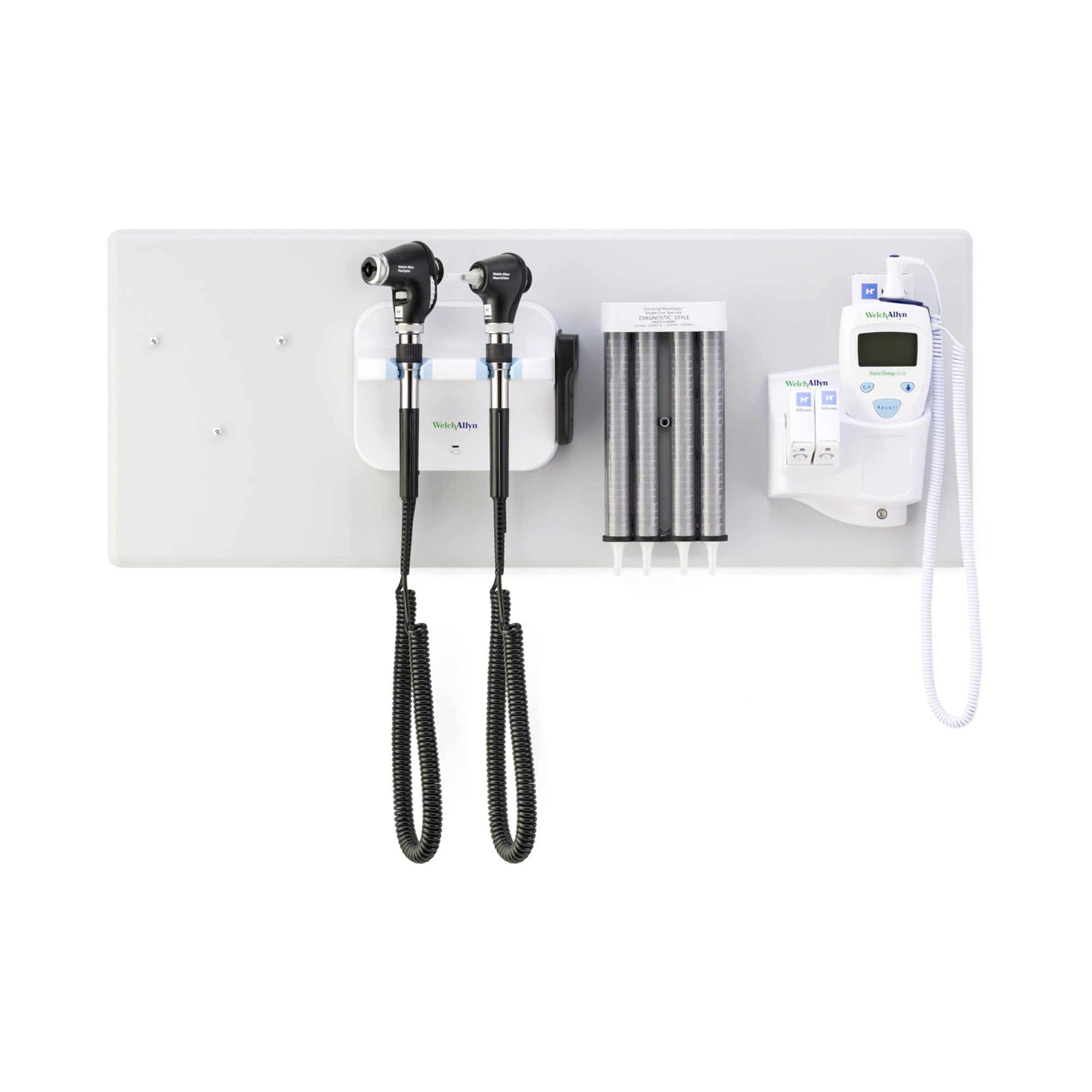

Welch Allyn Green Series 777 Integrated Wall System (1/EA)
Welch Allyn Green Series 777 Integrated Wall System with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, Ear Specula Dispenser, and SureTemp Plus Thermometer
Baxter Trade-Up Rebate Promotion
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
- Integrated Wall Systems – $250
- Desk Set – $100
- Diagnostic Set – $100
-
Lithium Ion Plus Power Handle – $25
- PanOptic Plus Ophthalmoscope – $50
- MacroView Plus Otoscope – $50
Offer Valid Through Dec 31, 2025
See Details Below
► Green Series Integrated Wall System
- Works with all Welch Allyn otoscope, ophthalmoscope and retinoscope models
- Help reduce facility cost with a more energy-efficient product
- No on/off switch helps with infection control
► PanOptic Plus LED Ophthalmoscope
- 20X larger viewing area when compared to a standard or pocket ophthalmoscope
- Long-lasting LED illumination reduces the need for frequent lamp replacement
- Quick Eye alignment lights on the patient side help you direct patient gaze
- Compatible with existing Welch Allyn 3.5 V power handles and wall transformers
- The iExaminer Pro System can be add on to support digital image capture during exams.
► MacroView Plus LED Otoscope for iExaminer
- Focus-free design
- Long-lasting LED illumination
- Experience brighter views when paired with LumiView Clear Single-Use Ear Specula
- MacroView Plus otoscope models are digitally-capable, for capturing and sharing images of the ear
- Compatible with existing Welch Allyn 3.5 V power handles
► Kleenspec Ear Specula Dispenser
- Designed for 524-Series Disposable Ear Specula Tips
- Sturdy in Build
- Wall-Mounted Dispenser
► SureTemp Plus Thermometer
- Large LCD displays in Fahrenheit or Celsius
- Convenient storage for 25 probe covers
- Security wall mount protects against theft
- Captures about 6,000 readings on 3 AA batteries
The Welch Allyn Green Series 777 Integrated Wall Systems and Transformers offer a variety of essential medical diagnostic tools, including ophthalmoscopes, otoscopes, blood pressure devices, and thermometers. With options for wide-view or standard scopes and digital or manual blood pressure devices, you can customize the system to meet your specific needs. Upgrade to new, improved scopes for better visibility and efficiency. This system helps streamline your workflow and collect reliable patient data in an energy-efficient manner.
For additional information on individual products, use the links below:
Welch Allyn Green Series 777 Wall Transformer
PanOptic Plus LED Ophthalmoscope
MacroView Plus LED Otoscope for iExaminer
Kleenspec Ear Specula Dispenser
SureTemp Plus Thermometer
Important Notes:
- Restricted Product: Rx Only - Current Valid Medical License Required.
- This product is non-returnable. Please verify your ordering information before making a purchase.
- Product ID numbers are for reference only and may not reflect the exact components in this configuration.
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
| Rally # | 52-4-7770 |
| Manufacturer # | 777-PM3WXS-US |
| GTIN | 00732094346954 |
| Brand | Green Series™ 777 |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Integrated Wall System |
| Dispenser Type | EarSpecula Dispenser |
| Instrument Type | GS 777 Wall Transformer |
| Mounting Type | Wall Board |
| Ophthalmoscope | LED PanOptic Plus with Quick Eye Alignment |
| Otoscope | LED MacroView Plus, for iExaminer |
| Thermometer | Suretemp® Plus Thermometer |
| Warranty | One Year Warranty |
| Rally # | 45-1-1015 |
| Manufacturer # | 77710 |
| GTIN | 00732094136678 |
| Brand | Green Series™ 777 |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Wall Transformer |
| UNSPSC Code | 42182005 |
| Warranty | Five Year Warranty |
| Electrical Power Supply | AC Input Power: 100–240V, 50–60 Hz, 0.16A max DC Output Power: 5V, 1.4A |
| Transformer | DC Input Power: 5V, 1A DC Output Power: 5V, 0.5A |
| Operating Temperature Limitation | 59 °F (15 °C) - 104 °F (40 °C) |
| Operating Humidity Limitation | 15% - 95% |
| Operating Atmospheric Pressure Limitation | 700 hPa - 1060 hPa |
| Transport/Storage Temperature Limitation | -4 °F (-20 °C) - 122 °F (50 °C) |
| Transport/Storage Humidity Limitation | 15% - 95% |
| Transport/Storage Atmospheric Pressure Limitation | 700 hPa - 1060 hPa |
| Rally # | 52-4-1183 |
| Manufacturer # | 118-3-US |
| GTIN | 00732094347135 |
| Brand | Welch Allyn |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Ophthalmoscope |
| Power Source | 3.5 V Power (Power Handle Not Included) |
| Type | PanOptic Plus |
| QuickEye Alignment Technology | Yes |
| Dimensions | 8 cm x 4.5 cm x 7.5 cm (Height x Width x Depth) |
| Weight | 130 g |
| Apertures | Small, Large, Red Free, Slit, Fixation target, Cobalt Blue |
| Diopter Range | -20 to +25 D |
| Diopter Steps | -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25 |
| Crossed-linear Polarizers | Yes |
| Lamp Type | SureColor LED |
| Lamp Warranty | 7 Year Warranty |
| Lamp Life | 80+ years (typical) |
| Color | Color rendering index (CRI): 95 typical; R9: 85 typical Color temperature: 2700K - 3500K |
| Field of View | 20° |
| UNSPSC Code | 42182005 |
| Warranty | Five Year Warranty |
| Rally # | 45-1-2383 |
| Manufacturer # | 238-3 |
| GTIN | 00732094320763 |
| Brand | Welch Allyn MacroView |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Otoscope Head |
| Power Source | 3.5 V |
| Type | MacroView Plus |
| UNSPSC Code | 42182005 |
| IExaminer Digital-Ready | Yes |
| Warranty | 5 Year |
| Height x Width x Depth | 7 cm h x 4.5 cm w x 5.5 cm d |
| Weight | 115 grams |
| Sealed Pneumatic Otoscopy | Yes |
| Illumination Type | Ring Fiber Optics |
| Lamp Size | 3.5 V LED Lamp |
| Lamp Type | SureColor LED |
| Lamp Life | Rated 60+ years based on typical use |
| Field of view | ~3 times that of a single-lens otoscope, like the standard-style 250-2. |
| Magnification | ~5X |
| Total Light Output | 5200 lux; 2.5 times brighter than traditional halogen scopes. |
| Color | Color rendering index (CRI): 95 typical; R9: 90 typical; Color Temperature: 3400K - 4500K |
| LED Warranty | 7 years |
| Rally # | 45-1-1013 |
| Manufacturer # | 52400 |
| GTIN | 00732094144208 |
| Brand | Welch Allyn |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Specula Dispenser |
| UNSPSC Code | 42182011 |
| Warranty | One Year Warranty |
| Rally # | 52-4-1692 |
| Manufacturer # | 01692-200 |
| GTIN | 00732094028980 |
| Brand | SureTemp |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Electronic Probe Thermometer |
| Equipment Classification | Internally Powered Device, Continuous Operation Not AP or APG Equipment |
| Display Type | LCD Display |
| Measuring Scale | Fahrenheit / Celsius |
| Mounting Type | Wall Mount |
| Applied Part | Thermometer Probe |
| Probe Type | Oral Probe |
| Probe Cord Length | 4.0 ft (1.2 m) |
| Calibration Accuracy | ±0.2 °F (±0.1 °C) (Monitor Mode) |
| Operating Altitude | -557 ft. to +16,000 ft / -170m to +4877m |
| Temperature Predict Time | Oral: Approximately 4-6 seconds Adult Axillary (18 years and older): Approximately 12 - 15 seconds Pediatric Axillary (17 years and younger): Approximately 10 - 13 seconds Rectal: Approximately 10 - 13 seconds |
| Unit Dimensions | 8.46" x 3.18" x 2.43" (215 mm x 81 mm x 62 mm) |
| Weight | 12.6 oz (357 g) |
| Ambient Temperature Range | 50.0 °F (10 °C) to 104 °F (40.0 °C) |
| Patient Temperature Range | 80.0 °F (26.7 °C) to 110 °F (43.3 °C) |
| Power Source | (3) 1.5 Vdc AA batteries [Included with Unit] |
| Battery Life | Approximately 6,000 temperatures |
| Transport/Storage Temperature | -13°F to +131°F (-25°C to +55°C) |
| Humidity | 15% to 95% non-condensing |
| IPXØ | Not protected against the ingress of water. |
| UNSPSC Code | 42182201 |
| Warranty | Three-year Limited Warranty |
×
Configurations
Note: Wall Board and 777 Wall Transformer included for all configurations display here.
You can find additional information on all configurations below:
Configuration Sets.
Available Configuration Links:
777-PM3WAS-US
777-PM3WAX-US
777-PM3WCX-US
777-PM3WXS-US
777-PM3WXX-US
777-SM2WAX
777-SM2WXX
Configurations
Note: Wall Board and 777 Wall Transformer included for all configurations display here.
You can find additional information on all configurations below:
Configuration Sets.
Available Configuration Links:
777-PM3WAS-US
777-PM3WAX-US
777-PM3WCX-US
777-PM3WXS-US
777-PM3WXX-US
777-SM2WAX
777-SM2WXX
×
Accessories and Parts
Accessories and Parts
| 02893-100 | Probe Well Kit, Oral, 9', Blue. Includes: probe, probe well |
| 104713 | Welch Allyn Power Cable; Twin USB Connectors; 8 ft/2.4 m |
| 118-EC | Welch Allyn PanOptic Basic and Plus Eye Cup (set of 5) |
| 11840-IEX-US | iExaminer SmartBracket Accessory |
| 11840-SC | iExaminer SmartClips (pack of 2) |
| 11840-TST | iExaminer Resolution Test Card |
| 21504 | Insufflation Bulb with Black Distal Tip |
| 24320 | SofSeal Specula Tips, Small, 480-Pack |
| 24400-U | MacroView and Diagnostic Otoscope Reusable Ear Specula Set; 2.5mm, 3mm, 4mm, 5mm; Qty. 4 |
| 3400-200-6W | Mobile Stand Mounting Kit Probp3400 |
| 3400-925-6W | ProBP3400 USB Cable 8 ft |
| 3400-926-6W | ProBP3400 USB Cable 1.5 ft |
| 4600-100-6W | Power Supply Mounting Kit |
| 4600-61-6W | Mobile Stand with Mounting Kit ProBP3400 |
| 4701-62 | Wall Mount with Basket (Spot Vital Signs LXi Device) |
| 52400 | KleenSpec Disposable Ear-Specula Dispenser for 524-Series Ear Specula, 10-Pack |
| 52432-CLR-1 | LumiView 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 6800-Pack |
| 52434-CLR-1 | LumiView 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 6800-Pack |
| 52432-U | KleenSpec 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 8,500-Pack |
| 52434-U | KleenSpec 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes, 8,500-Pack |
| 52700 | 4.0mm KleenSpec Disposable Ear Specula with Instrumentation Slot, 192-Pack |
| 728041 | AC Blade FRIWO Power Supple, US BLUE |
| 7670-12 | 767 Wall Systems Rolling Mobile Stand. |
| 76700 | 3.5V Locking Collar Accessory; Qty. 2 |
| 772221 | Power Supply ,5V,1.4A,USB-A |
| 777-LH | 3.5V Head Locking Hardware with Set Screw |
| PWCD-6WT-B | ProBP Mobile Stand Cord Assy N. AMERICA |
×
Documentation Links
Specification Sheet Brochure Installation Guide
Documentation Links
Specification Sheet Brochure Installation Guide
- 30 Inch Integrated Wall Panel, Installation Instructions
- 34 inch Integrated Wall Panel, Installation Instructions
- 36" Wall Panel Installation Instructions
- Welch Allyn GS 777 Wall Transformer - Instructions for use
- PanOptic Plus Ophthalmoscope, Directions for Use, US
- Welch Allyn iExaminer Pro Instructions for use Software version 4.0 iOS
- Welch Allyn iExaminer Pro Instructions for use Software version 3.1.x (Android)
- Instructions for use: Welch Allyn PanOptic Ophthalmoscopes Multi-Language
- 3rd Edition EMC Tables - Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes
- 4th Edition EMC Tables - Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes
- EMC compliance: MacroView and LED Otoscopes and PanOptic Ophthalmoscopes devices 3rd Edition
- EMC compliance: MacroView and LED Otoscopes and PanOptic Ophthalmoscopes devices 4th Edition
×
PanOptic Ophthalmoscope Related Video Links
PanOptic Ophthalmoscope Related Video Links
- How to Operate the Welch Allyn PanOptic Plus Ophthalmoscope
- How To: Setting Up and Using the Welch Allyn iExaminer
- Welch Allyn PanOptic™ Ophthalmoscope
- Welch Allyn PanOptic Ophthalmoscope - Diagnosis 101
- PanOptic iExaminer (HD)
- Welch Allyn iExaminer™ System
- How to Set Up the Welch Allyn iExaminer SmartBracket Accessory
- How to Change the Lamp in a Welch Allyn Ophthalmoscope or Otoscope
- How to Operate the Welch Allyn MacroView Plus Otoscope + iExaminer System
- Welch Allyn MacroView Otoscope - Diagnosis 101
- How to Charge the 3.5 V Lithium Ion Rechargeable Handle
- How to Turn on the Power Handle for a Welch Allyn Instrument Head
×
Promotional Information
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
Offer Valid Through December 31, 2025
To claim your rebate, customers must provide valid proof of purchase and complete the designated rebate form.
The customer will receive a Proof of Purchase from Rally Inc. after purchasing the product. However, the promotional offer is handled solely between you, the customer, and the manufacturer, Baxter. Rally Inc. does not oversee these offers. To check eligibility for the promotion and receive your promotional item, please follow the manufacturer's online instructions.
You can find more informations on the promotion and their required form here:
Baxter Exam Tool Promotional Information
Promotional Information
Baxter Trade-Up Rebate Promotion
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
➤ Integrated Wall Systems – $250
➤ Desk Set – $100
➤ Diagnostic Set – $100
➤ Lithium Ion Plus Power Handle – $25
➤ PanOptic Plus Ophthalmoscope – $50
➤ MacroView Plus Otoscope – $50
To claim your rebate, customers must provide valid proof of purchase and complete the designated rebate form.
The customer will receive a Proof of Purchase from Rally Inc. after purchasing the product. However, the promotional offer is handled solely between you, the customer, and the manufacturer, Baxter. Rally Inc. does not oversee these offers. To check eligibility for the promotion and receive your promotional item, please follow the manufacturer's online instructions.
You can find more informations on the promotion and their required form here:
Baxter Exam Tool Promotional Information
