Rally #52-4-7730
Baxter / Hillrom / Welch Allyn #777-PM3XXX-US

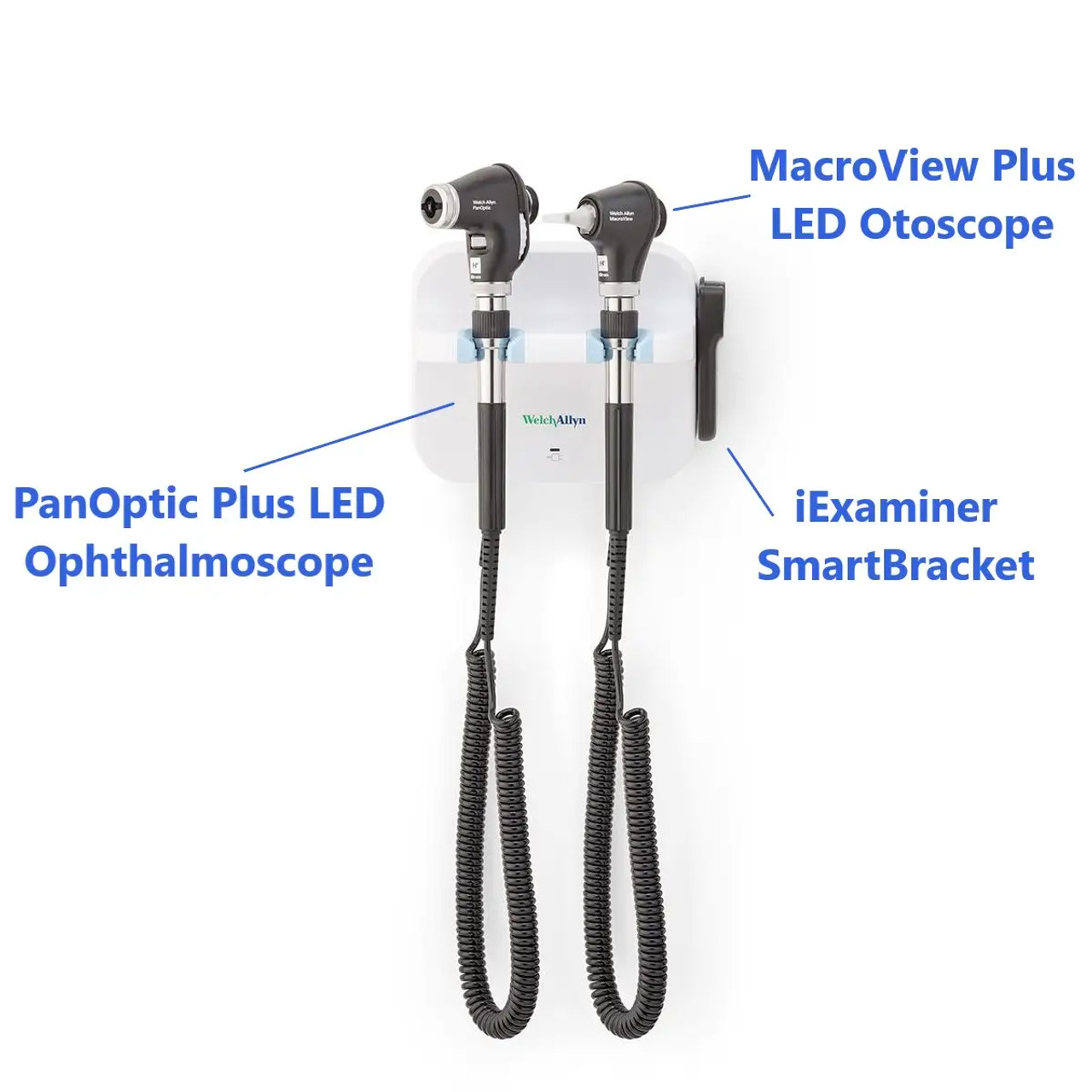

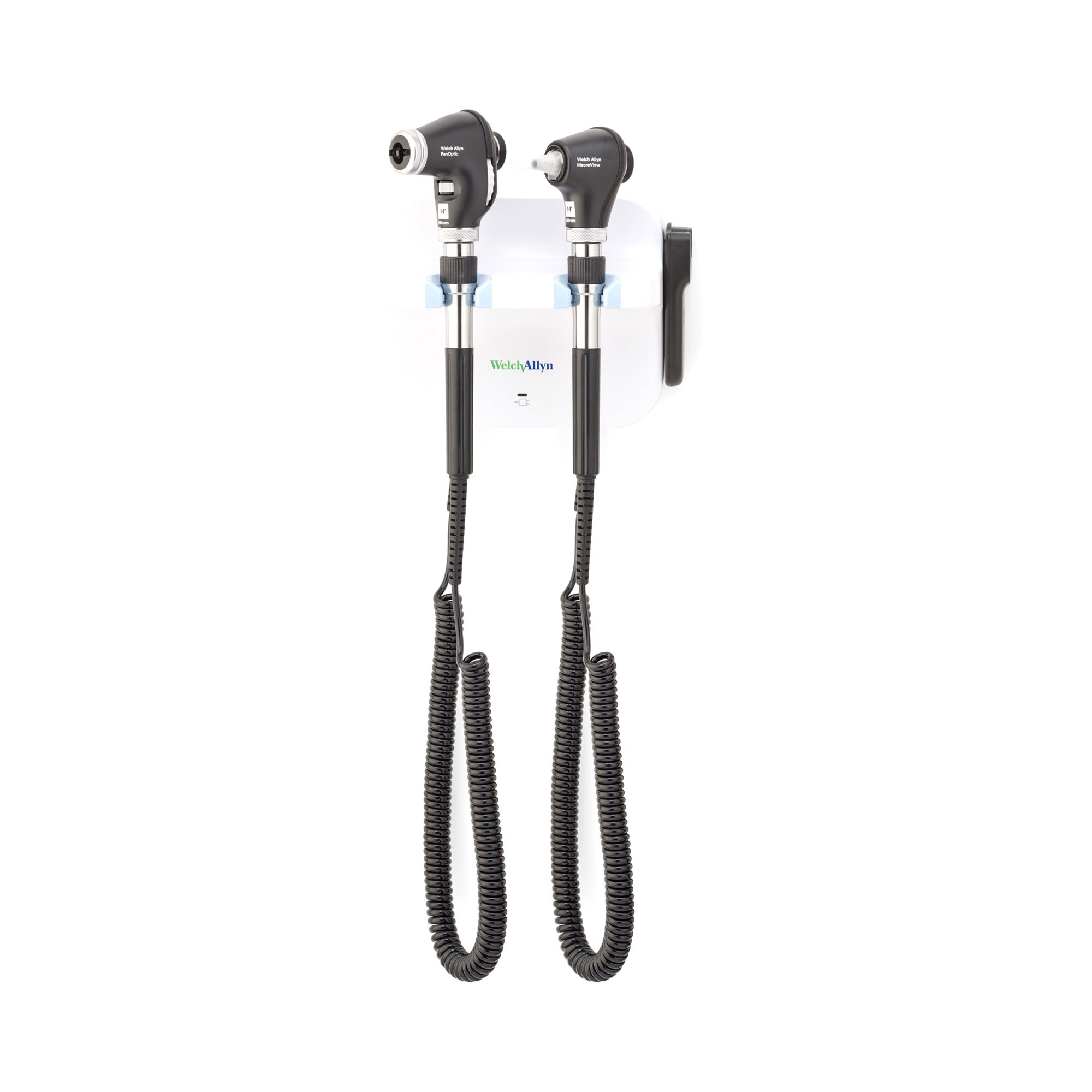

Welch Allyn Green Series 777 Wall Transformer Set (1/EA)
Welch Allyn Green Series 777 Wall Transformer with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, with iExaminer SmartBracket Accessory
Baxter Trade-Up Rebate Promotion
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
- Integrated Wall Systems – $250
- Desk Set – $100
- Diagnostic Set – $100
-
Lithium Ion Plus Power Handle – $25
- PanOptic Plus Ophthalmoscope – $50
- MacroView Plus Otoscope – $50
Offer Valid Through Dec 31, 2025
See Details Below
► Wall Transformer
- Works with all Welch Allyn otoscope, ophthalmoscope and retinoscope models
- Help reduce facility cost with a more energy-efficient product
- No on/off switch helps with infection control
► PanOptic Plus LED Ophthalmoscope
- 20X larger viewing area when compared to a standard or pocket ophthalmoscope
- Long-lasting LED illumination reduces the need for frequent lamp replacement
- Quick Eye alignment lights on the patient side help you direct patient gaze
- Compatible with existing Welch Allyn 3.5 V power handles and wall transformers
- The iExaminer Pro System can be add on to support digital image capture during exams.
► MacroView Plus LED Otoscope for iExaminer
- Focus-free design
- Long-lasting LED illumination
- Experience brighter views when paired with LumiView Clear Single-Use Ear Specula
- MacroView Plus otoscope models are digitally-capable, for capturing and sharing images of the ear
- Compatible with existing Welch Allyn 3.5 V power handles
The Welch Allyn Green Series 777 Wall Transformer is an energy-efficient, wall-mounted diagnostic power system designed for clinical settings. It features handle-based rheostats and automatic on/off sensors, eliminating the need for a traditional power switch to reduce contact points and help minimize cross-contamination. Compatible with all Welch Allyn 3.5V instrument heads—including otoscopes, ophthalmoscopes, and retinoscopes—it offers modular flexibility to suit various examination needs.
For additional information on individual products, use the links below:
Welch Allyn Green Series 777 Wall Transformer
PanOptic Plus LED Ophthalmoscope
MacroView Plus LED Otoscope for iExaminer
Important Notes:
- Restricted Product: Rx Only - Current Valid Medical License Required.
- This product is non-returnable. Please verify your ordering information before making a purchase.
- Product ID numbers are for reference only and may not reflect the exact components in this configuration.
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
| Rally # | 52-4-7730 |
| Manufacturer # | 777-PM3XXX-US |
| GTIN | 00732094346930 |
| Brand | Green Series™ 777 |
| Manufacturer | Baxter/Hillrom/Welch Allyn |
| Country of Origin | Unknown |
| Application | Wall Transformer |
| Instrument Type | GS 777 Wall Transformer |
| Ophthalmoscope | LED PanOptic Plus with Quick Eye Alignment |
| Otoscope | LED MacroView Plus, for iExaminer |
| Warranty | One Year Warranty |
| Rally # | 45-1-1015 |
| Manufacturer # | 77710 |
| GTIN | 00732094136678 |
| Brand | Green Series™ 777 |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Wall Transformer |
| UNSPSC Code | 42182005 |
| Warranty | Five Year Warranty |
| Electrical Power Supply | AC Input Power: 100–240V, 50–60 Hz, 0.16A max DC Output Power: 5V, 1.4A |
| Transformer | DC Input Power: 5V, 1A DC Output Power: 5V, 0.5A |
| Operating Temperature Limitation | 59 °F (15 °C) - 104 °F (40 °C) |
| Operating Humidity Limitation | 15% - 95% |
| Operating Atmospheric Pressure Limitation | 700 hPa - 1060 hPa |
| Transport/Storage Temperature Limitation | -4 °F (-20 °C) - 122 °F (50 °C) |
| Transport/Storage Humidity Limitation | 15% - 95% |
| Transport/Storage Atmospheric Pressure Limitation | 700 hPa - 1060 hPa |
| Rally # | 52-4-1183 |
| Manufacturer # | 118-3-US |
| GTIN | 00732094347135 |
| Brand | Welch Allyn |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Ophthalmoscope |
| Power Source | 3.5 V Power (Power Handle Not Included) |
| Type | PanOptic Plus |
| QuickEye Alignment Technology | Yes |
| Dimensions | 8 cm x 4.5 cm x 7.5 cm (Height x Width x Depth) |
| Weight | 130 g |
| Apertures | Small, Large, Red Free, Slit, Fixation target, Cobalt Blue |
| Diopter Range | -20 to +25 D |
| Diopter Steps | -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25 |
| Crossed-linear Polarizers | Yes |
| Lamp Type | SureColor LED |
| Lamp Warranty | 7 Year Warranty |
| Lamp Life | 80+ years (typical) |
| Color | Color rendering index (CRI): 95 typical; R9: 85 typical Color temperature: 2700K - 3500K |
| Field of View | 20° |
| UNSPSC Code | 42182005 |
| Warranty | Five Year Warranty |
| Rally # | 45-1-2383 |
| Manufacturer # | 238-3 |
| GTIN | 00732094320763 |
| Brand | Welch Allyn MacroView |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Otoscope Head |
| Power Source | 3.5 V |
| Type | MacroView Plus |
| UNSPSC Code | 42182005 |
| IExaminer Digital-Ready | Yes |
| Warranty | 5 Year |
| Height x Width x Depth | 7 cm h x 4.5 cm w x 5.5 cm d |
| Weight | 115 grams |
| Sealed Pneumatic Otoscopy | Yes |
| Illumination Type | Ring Fiber Optics |
| Lamp Size | 3.5 V LED Lamp |
| Lamp Type | SureColor LED |
| Lamp Life | Rated 60+ years based on typical use |
| Field of view | ~3 times that of a single-lens otoscope, like the standard-style 250-2. |
| Magnification | ~5X |
| Total Light Output | 5200 lux; 2.5 times brighter than traditional halogen scopes. |
| Color | Color rendering index (CRI): 95 typical; R9: 90 typical; Color Temperature: 3400K - 4500K |
| LED Warranty | 7 years |
×
Configurations
For additional configuration information please see link below:
Configuration Sets
Configurations
| 77510 | Welch Allyn Green Series 777 Wall Diagnostic System including KleenSpec Disposable Specula Dispenser, Instrument Heads Not Included |
| 777-PM2XXX-US | Welch Allyn Green Series 777 Wall Transformer with PanOptic Basic LED Ophthalmoscope and MacroView Basic LED Otoscope |
| 777-PM3XXX-US | Welch Allyn Green Series 777 Wall Transformer with PanOptic Plus LED Ophthalmoscope, MacroView Plus LED Otoscope for iExaminer, with iExaminer SmartBracket Accessory |
| 777-SM2XXX | Welch Allyn Green Series 777 Wall Transformer with Coaxial LED Ophthalmoscope and MacroView Basic LED Otoscope |
| 77710 | Welch Allyn Green Series 777 Wall Diagnostic System; Instrument Heads Not Included |
| 77710-TAKX | Welch Allyn Green Series 777 Wall Diagnostic System including Wall Aneroid Sphygmomanometer, SureTemp Plus 690 Electronic Thermometer, KleenSpec Disposable Specula Dispenser, Instrument Heads Not Included |
| 77910 | Welch Allyn Green Series 777 Wall Diagnostic System including Wall Aneroid Sphygmomanometer, KleenSpec Disposable Specula Dispenser, Instrument Heads Not Included |
For additional configuration information please see link below:
Configuration Sets
×
Accessories
Accessories
| 104299 | Coiled Cord and Handle Assembly (Coil Cord Length 12 ft/3.6 m) |
| 104713 | Welch Allyn Power Cable; Twin USB Connectors; 8 ft/2.4 m (Power Supply not included) |
| 104992 | Sk, 777 Front with Light Pipe |
| 104993 | Sk, 777 Twin Rear Hsg |
| 105062 | 777 Wall Transformer Cradle Replacement, Blue (Qty 1) |
| 118-EC | Welch Allyn PanOptic Basic and Plus Eye Cup (Set of 5) |
| 11840-IEX-US | iExaminer SmartBracket Accessory including three SmartClips |
| 11840-SC | iExaminer SmartClips (pack of 2) |
| 11840-TST | iExaminer Resolution Test Card |
| 21504 | Insufflation Bulb for Otoscopes with Black Distal Tip Connector |
| 24320 | SofSeal Specula Tips, Small, 480-Pack |
| 408514 | PCBA 777 Wall Transformer |
| 408781 | Wall Transformer Mounting Kit |
| 52432-CLR-1 | Welch Allyn LumiView 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes; Pack of 6800 |
| 52432-U | KleenSpec 2.75 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes; Case of 8,500 |
| 52434-CLR-1 | Welch Allyn LumiView 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes; Pack of 6800 |
| 52434-U | KleenSpec 4.25 mm Disposable Ear Specula for MacroView and Diagnostic Otoscopes; Case of 8,500 |
| 52700 | KleenSpec 4.0 mm Disposable Ear Specula with Instrumentation Slot for MacroView and Diagnostic Otoscopes, Case of 192 |
| 7670-12 | Rolling Mobile Stand for 767 Wall Systems |
| 76700 | Welch Allyn Locking Collar Accessory, Qty. 2 |
| 777-LH | Welch Allyn 3.5V Head Locking Hardware with Set Screw |
×
Documents Links
Documents Links
- Green Series 777 Integrated Wall System Brochure
- PA Tools Portfolio Brochure
- Green Series 777 Wall Transformer; Declaration of Conformity
- Wall transformer Mounting Template, Reference
- Diagnostic Systems Wall GS777 Wall Transformer, Service Manual
- Welch Allyn GS 777 Wall Transformer - Instructions for use
- Instructions for 76700, Welch Allyn 3.5v Locking Collars, User Manual
- MacroView Plus Otoscope, Directions for Use
- PanOptic Plus Ophthalmoscope, Directions for Use, US
- 3rd Edition EMC Tables - Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes
- 4th Edition EMC Tables - Welch Allyn PanOptic Ophthalmoscopes and Welch Allyn MacroView and LED Otoscopes
- MacroView Otoscope Spec Sheet
×
Currently Unavailable
Related Video Links
Currently Unavailable
Related Video Links
- Welch Allyn Traditional Ophthalmoscope - Diagnosis 101
- How to Change the Lamp in a Welch Allyn Ophthalmoscope or Otoscope
- How to Turn on the Power Handle for a Welch Allyn Instrument Head
- Welch Allyn MacroView Otoscope - Diagnosis 101
- How to Operate the Welch Allyn MacroView Plus Otoscope + iExaminer System
- How to Set Up the Welch Allyn iExaminer SmartBracket Accessory
- How to Operate the Welch Allyn PanOptic Plus Ophthalmoscope
- Welch Allyn PanOptic™ Ophthalmoscope
×
Promotional Information
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
Offer Valid Through December 31, 2025
To claim your rebate, customers must provide valid proof of purchase and complete the designated rebate form.
The customer will receive a Proof of Purchase from Rally Inc. after purchasing the product. However, the promotional offer is handled solely between you, the customer, and the manufacturer, Baxter. Rally Inc. does not oversee these offers. To check eligibility for the promotion and receive your promotional item, please follow the manufacturer's online instructions.
You can find more informations on the promotion and their required form here:
Baxter Exam Tool Promotional Information
Promotional Information
Baxter Trade-Up Rebate Promotion
Trade up to the latest Welch Allyn diagnostic equipment and earn up to $250 in rebates
while enhancing your clinical capabilities with advanced technology.
Eligible Products:
➤ Integrated Wall Systems – $250
➤ Desk Set – $100
➤ Diagnostic Set – $100
➤ Lithium Ion Plus Power Handle – $25
➤ PanOptic Plus Ophthalmoscope – $50
➤ MacroView Plus Otoscope – $50
To claim your rebate, customers must provide valid proof of purchase and complete the designated rebate form.
The customer will receive a Proof of Purchase from Rally Inc. after purchasing the product. However, the promotional offer is handled solely between you, the customer, and the manufacturer, Baxter. Rally Inc. does not oversee these offers. To check eligibility for the promotion and receive your promotional item, please follow the manufacturer's online instructions.
You can find more informations on the promotion and their required form here:
Baxter Exam Tool Promotional Information
