Rally #P131-1-7909
Vectracor QRS Diagnostics #790009-01
Universal SmartECG & Orbit™ Spirometry Combo (1/Kit)
Combo Package Bundle, ECG & Spirometer, PC Based, Office Medic Software Included.
Universal SmartECG Features
- Store and analyze up to 12-channels of high-resolution ECG data.

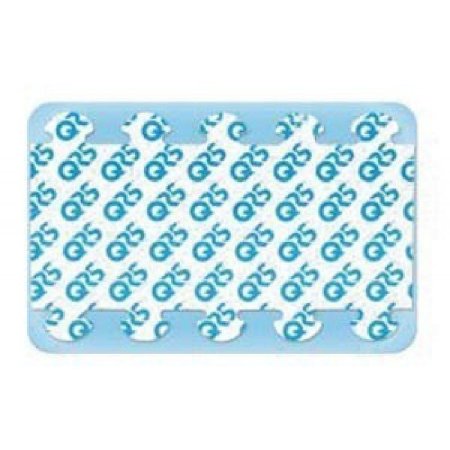

- Electrodes and electrode adapters included.
- Office Medic software included for ease of use.
- Draws its power from the PC; No batteries required.
- Connects directly to PC, laptop, or tablet.
- Eliminates calibration and sterilization with disposable nose-clips and pre-calibrated mouthpieces.
- Integrates with Office Medic™ software and EMR system.
- Provides patient safety by reducing cross-contamination liability.
- No batteries required as power is drawn from the PC.
- Combines with Office Medic™ software for customizable reports and transfer of files.
- Instantly stores the test data in its central database allowing you to manage & review it from anywhere.
- Create customizable reports in PDF, JPEG, and TIFF formats to integrate with your EMR.
- Multiple Language Options: English, French, German, Italian, Portuguese, and Spanish.
- Up to 5 years of Warranty
The Orbit™ is a portable spirometer that connects to PCs, laptops, and tablets. It simplifies testing by using disposable, pre-calibrated mouthpieces and nose clipss, eliminating calibration and sterilization needs. The device requires no batteries, as it draws power from the PC and can integrates with Office Medic™ software for easy data storage and customizable report generation.
Office Medic is user-friendly software that comes with all VectraCor QRS ECGs and Spirometers. It allows users to collect, store, and review diagnostic data using a regular laptop, desktop, or tablet. The software saves test data in a central database, enabling access from anywhere and creating customizable reports in PDF, JPEG, and TIFF formats to integrate with EMR systems.
Important Notes:
- Rx Only - Federal law restricts this device to the sale by or on the order of a physician.
- This item is non-returnable and non-refundable. Please make sure it is the right product and quantity before you order.
- Tablets and laptops are not included if shown in the pictures or documents.
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
Universal Smart ECG
Orbit Spirometer
Office Medic
| Rally # | P131-1-7909 |
| Manufacturer # | 790009-01 |
| Brand | Orbit |
| Manufacturer | QRS Diagnostic |
| Country of Origin | United States |
| Application | Electrocardiograph with Spirometry |
| Communication & Power | USB Connection |
| HCPCS | A4557 |
| UNSPSC Code | 42271602 |
| Warranty | 3 Years |
Universal Smart ECG
| Hub Weight | 280 - 335 grams (0.62 – 0.66 lb) |
| Hub Dimensions | 85mm x 91mm x 20mm (3.3” x 3.6” x 0.8”) |
| Patient Leads Length | 1.0 meter (3.3 ft) for limb leads 0.6 meter (2.0 ft) for chest leads |
| PC Connection Length | 1.8 meter (5.9 ft) USB cable |
| Patient Leads | 12 Lead Cable (10 patient leads) |
| Case Material | ABS Plastic |
| Electrode Connections | 4 mm Banana plug with "tab" or "snap" connectors |
| Electrode Labeling | Abbreviations and colors to comply with either IEC or AAMI (AHA) standards |
| Display and Operating Console | Dependent on PC (supplied by user) |
| Gain/Sensitivity | 5, 10, 20 mm/mV |
| Input Range | ±5 mV |
| Acquisition sample rate | 1000 samples per second (compressed to 500Hz with peak picking and averaging algorithm) |
| Heart Rate Range | 30 bpm - 200 bpm |
| Frequency Response | 0.05 to 175Hz ± 3dB |
| Defibrillator Protection | Patient leads are isolated from system and operator, with 5 kV protection |
| Common Mode Rejection | -60dB (minimum) |
| Safety Standards | Complies with IEC 60601-1, IEC 60601-1-2, and IEC 60601-2-25 |
| Accuracy | Accurate to IEC 60601-2-25 essential performance requirements. |
| Leads Off Indicators | Connection status for each lead is shown on Acquisitionscreen |
| Power Source | Powered by PC via USB interface |
| Supply Voltage | 5V DC |
| Supply Current | <17mA DC |
| Permanent Filters | High Pass: 0.05Hz 2nd order Low Pass: 175Hz 2nd order Baseline Wander: Baseline reset by adaptive zeroing algorithm |
| Notch filter (Mains Noise Rejection) | 50Hz 4th order Butterworth 60Hz 4th order Butterworth |
| Low pass (Muscle Artifact Filter) | 35Hz 4th order |
| Report Capabilities | User selectable Report formats |
| Operating Temperature | 10 to 35° C (50 to 95° F) |
| Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Operating Relative Humidity | 20 to 85% (non-condensing) |
| Storage Relative Humidity | 10 to 85% (non-condensing) |
| Atmospheric Pressure | 70 kPA – 106 kPa |
Orbit Spirometer
| Weight | 226.8 grams (0.5 lb.) |
| Dimensions | 109.2 mm x 94.0 mm x 43.2 mm (4.3” x 3.7” x 1.7”) |
| Communication Port | USB |
| Software Compatibility | Office Medic Version 5.5 (or later) |
| Power Supply | 5 Vdc ±5% 100 mA or less from the host PC USB Port |
| Spirometry Measurement Principle | The pressure is converted to flow. Volume measurement by flow integration. |
| Measurement Time | FVC: 60 sec. SVC: 60 sec. MVV: 15 sec. |
| Sampling Rate | 125 Hz |
| Range (BTPS) | Flow: ±14 liters/second Volume: 0.5 – 8.0 liters |
| Accuracy (BTPS) |
Flow:
|
| Precision (BTPS) | Flow: PEF: ±5% of indication or 150 ml/sec, whichever is greater Volume: FVC and FEV1: ±3% or 50 ml, whichever is greater |
| Minimum Tracing Size | Flow Volume: Flow (vertical): 5 mm/L/S; Volume (horizontal): 10 mm/L Volume Time: Volume (vertical): 10 mm/L; Time (horizontal): 20 mm/S |
| Calibration | ATS 3-speed or standard calibration check |
| Predicted Normals |
|
| Interpretation | ATS/ERS 2005, BTS-NICE 2004-2005, NLHEP 2000, Enright 1987 |
| Report Format | Pre-test overlay with full page graphs Pre/Post test overlay with full page graphs |
| Parameters Measured | FVC, FEV0.5, FEV1, FEV6, FEV1/FEV6, FEV3, FEV1/FVC, FEV3/FVC, PEFR, PEFT, FEF25%, FEF50%, FEF75%, FEF25-75%, FIVC, FIV0.5, FIV1, FIV3, FIV1/FIVC, FIV3/FIVC, PIFR, FIF50%, FIF 25-75%, FIF.2-1.2, FVC/FIVC, Extrapolated Volume (Ext. Vol. BEV), EOTV, FET, MVV, RR, MTV, SVC |
| Languages Available | English, Spanish, French, German, Italian, Portuguese |
| Storage Conditions Temperature | -15 to 50° C (5 to 122° F) |
| Relative Humidity | < 90% (non-condensing) |
| Storage Atmospheric Pressure | 700 to 1060 hPa |
| Operating Conditions Temperature | 15 to 40° C (59 to 104° F) |
| Relative Humidity | 10 to 90% (non-condensing) |
| Operating Atmospheric Pressure | 700-1060 hPa |
Office Medic
| Manufacturer | VectraCor |
| Country of Origin | United States |
| Application | Software |
| For Use With | For VectraCor Universal SmartECG & Orbit Portable Spirometer |
| Language Options | English, French, German, Italian, Portuguese, and Spanish. |
| Customizable Report Formats Type | PDF, JPEG, and TIFF |
| ECG Indications for Use | Receipt, Storage, Viewing, Printing and Interpretive Analysis of 12 channel simultaneous ECGs
|
| Spirometry Indications for Use | Diagnostic Spirometry
|
| Warranty | Up to 5 Years |
| Operating System | Windows® 10, Windows® 11 |
| Free Disk Space | 1 GB |
| RAM | 1 GB (min) |
| Internet | Internet Explorer 9.0 (min) |
| Processor | 1.4GHZ (min) 2GHZ or faster recommended |
| Interface | An Available USB Port |
| Single Lead Report | Prints a single strip or averaged complex with scale options: 1x, 2x, 4x, 8x, 16x. |
| 3×4 Simultaneous | Prints 2.5-second segments of all twelve channels displayed at the same point in time along with a 10-second single channel rhythm strip. |
| 3×4 Sequential | Prints 2.5-second segments of all twelve channels displayed at the same point in time progressing in four sequential columns along with a 10-second single channel rhythm strip. |
| Average Complexes | Print an average QRS complex for all 12 channels along with a 10-second single-channel rhythm strip. |
| 6×1 Format (2 Page) | Prints a 10-second trace of each channel. |
| 6×2 Format (1 Page) | Prints a 5-second trace of each channel. |
| Measurements Table | Prints a chart with amplitude, slope, and duration data for all 12 channels. |
| Include | Allows users to select whether to include Measurements, Interpretation, and/or Comments in the report(s). |
| Speed & Sensitivity | Allows users to select the Speed (12.5, 25, or 50 mm/s) and Sensitivity (5, 10, or 20 mm/mV) of the ECG reports. |
| Minor Grid | This allows you to select the minor grid: Lines, Dots, or None. |
| Full Page Graphs | Two additional pages contain full-page F(V) and V(T) graphs in the report. |
| Overlay Tests | Overlay the best three pre-tests and post-tests in Color or Black & White. |
| Custom Report Header | Create a custom header to reflect the physician, clinic, or any preferred details. |
| FVC Reports | Prints the F(V) and/or V(T) graphs at the bottom of the report. |
| Optional Parameters | Choose the parameters you want to be displayed on the report. |
