Rally #45-1-6868
Baxter / Hillrom / Welch Allyn #68MXTP-B

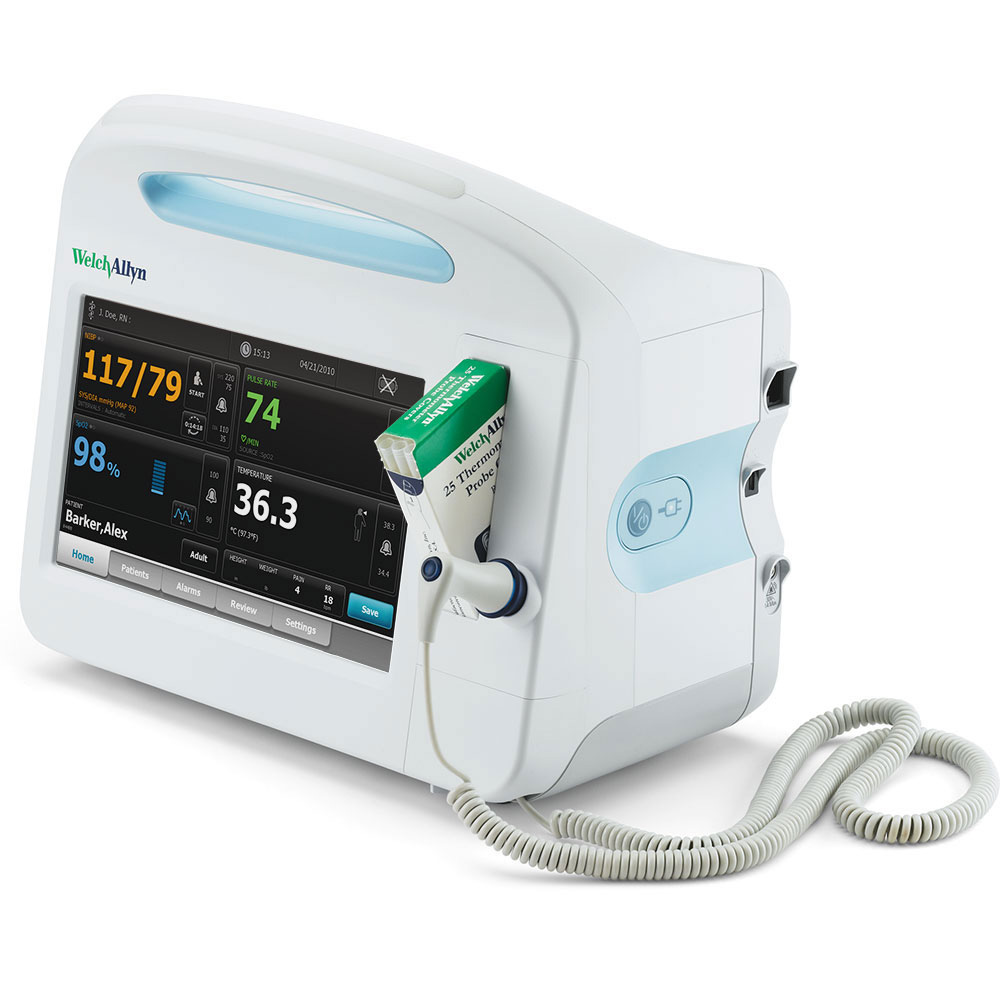

Welch Allyn Connex 6800 Vital Signs Monitor (1/EA)
Welch Allyn Connex 6800 Vital Signs Monitor with Masimo SpO2, SureTemp Plus Thermometry, Internal Printer, SureBP Non-invasive Blood Pressure, Pulse Rate, MAP, Custom Scoring, Nurse Call, Four USB Ports for Accessories, Internal 802.11 a/b/g Wireless Radio; 100-240 V, 50-60 Hz AC, IEC Plug Type-B
Features
The SureBP technology allows for quick blood pressure measurements.
Customizable workflows enable efficient documentation of patient observations and modifiers.
Choose between different thermometers for temperature readings.
Early Warning Scores help detect patient deterioration.
Various sensors and monitoring devices can be integrated, including ECG and capnography.
Secure access and data encryption ensure patient information safety.
Connect to EMR through WiFi or Ethernet.
The Connex VSM 6000 series monitors by Welch Allyn are used by clinicians to monitor vital signs like blood pressure, pulse rate, oxygen saturation, and body temperature in different care settings. Optional Masimo and Oridion modules provide additional monitoring capabilities for oxygen saturation, hemoglobin concentration, carbon dioxide levels, and respiration rate. The system is compatible with weight scales and the EarlySense system for contactless measurement. The ECG/Impedance Respiration module analyzes ECG signals in patients with cardiac issues, while the touchscreen interface supports monitoring various vital signs, including ECG activity. Customizable features and connectivity to EMRs allow for real-time data access and early identification of patient deterioration. Data encryption and security features meet U. S. Department of Defense standards as well.
Note: Rx Only.
For the State of California:
Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov.
Warning: Product is considered HAZMAT and cannot ship via Air or to AK, GU, HI, MP, PR, VI.
Specifications
Configurations
Accessories & Parts
Education & Documents
Videos
Services
×
Current Configuration Specifications
Rally # 45-1-6868
Manufacturer # 68MXTP-B
GTIN 00732094150940
Brand Connex® 6800 Series
Manufacturer Baxter / Hillrom / Welch Allyn
Country of Origin Unknown
Application Patient Monitor
Display Type Digital Display
Power Source AC Power / Battery Operated
Wireless Radio Included
Pulse Oximetry Masimo® SpO2
Respiration Not Included
Thermometry SureTemp Plus Thermometry
Printing Internal Printer
UNSPSC Code 42181904
Warranty Two Year Warranty
General Product Specifications
Workflows Spot, Office, Intervals, Continuous
Device Level Advanced
Patient Populations Adult, Pediatric, Neonatal*
Device Alarms Yes
Third-Party Alarm Notification Yes
Parameters Blood Pressure, Pulse Rate, Temperature, SpO2, etCO2, SpHb, ECG, RRa
SureBP Technology (20-sec) Yes
Blood Pressure Averaging Yes
Diagnostic Handles -
SpO2 Options Nellcor, Masimo
Temperature Options SureTemp Plus, Braun PRO 6000
Early Warning Scoring Yes
Custom Documentation Fields Up to 20
Custom Interval Protocols Up to 6
Wireless Connectivity WiFi
Wired Connectivity USB, Ethernet
Display 8.9" Color LCD, Touchscreen
Scale Integration Yes
Mounting Options Cable Management Stand, Classic Stand, Wall Mount
Common Accessory Options Barcode, RFID, Scales
Memory (# of Readings) 400
*Not all parameters may be used with neonates. Refer to the appropriate IFU for details.
Select Detailed Specifications
Physical Height: 10 in. (25.4 cm) Width: 11 in. (27.9 cm) Depth: 6 in. (15.2 cm) Weight (including battery): 9.5 lb. (4.3 kg)
Graphical Display Dimensions Display area (W x H): 8 in. x 4 in. (20.3 cm x 10.2 cm) Resolution: 1024 x 600 pixels
Battery (9-Cell) Rating: 10.8 V, 6.75 Ah (73 Wh) Composition: Lithium-ion Charge time to 80% capacity: 2 hr 25 m Charge time to 100% capacity: 4 hr Battery life: 7.8 hr**
NIBP - Systolic Range Adult: 30 to 260 mmHg (StepBP, SureBP) Pediatric: 30 to 260 mmHg (StepBP, SureBP) Neonate: 20 to 120 mmHg (StepBP)
NIBP - Diastolic Range Adult: 20 to 220 mmHg (StepBP, SureBP) Pediatric: 20 to 220 mmHg (StepBP, SureBP) Neonate: 10 to 110 mmHg (StepBP)
NIBP - Cuff Inflation Target Adult: 160 mmHg (StepBP) Pediatric: 120 mmHg (StepBP) Neonate: 90 mmHg (StepBP)
NIBP - Maximum Target Pressure Adult: 280 mmHg (StepBP, SureBP) Pediatric: 280 mmHg (StepBP, SureBP) Neonate: 130 mmHg (StepBP)
NIBP - BP Determination Time Typical 15 seconds (SureBP)
NIBP - BP Accuracy Meets or exceeds ANSI.AAMI SP10:2002 standards
Temperature SureTemp temperature range: 80°F to 110°F (26.7°C to 43.3°C) Braun temperature range: 68°F to 108°F (20.0°C to 42.2°C)
SpO2 SpO2 performance measurement range: 1 to 100%
Wireless Radio
Wireless Network Interface IEEE 802.11 a/b/g/n
Frequency 2.4 GHz – 2.483 GHz (2.4 GHz bands) 5.15 GHz to 5.35 GHz, 5.725 GHz to 5.825 GHz (5 GHz bands)
Authentication/Encryption Wireless Equivalent Privacy (WEP, RC4 Algorithm); Wi-Fi Protected Access (WPA); IEEE 802.11i (WPA2); TKIP, RC4 Algorithm; AES, Rijndael Algorithm; Encryption Key Provisioning; Static (40-bit and 128-bit lengths); PSK; Dynamic; EAP-FAST; EAP-TLS; EAP-TTLS; PEAP-GTC 1; PEAPMSCHAPv2; PEAP-TLS
FIPS 140-2 Yes
Device Data Security Features FIPS approved encryption algorithms of transmitted data; Server authentication of the device; Digitally signed software images and configuration files
Environmental Specifications
Operating Temperature 50 °F to 104 °F (10 °C to 40 °C)
Transport/Storage Temperature -4 °F to 122 °F (-20 °C to 50 °C)
Operating Altitude -557 to 10,000 ft. (-170 m to 3,048 m)
Operating Humidity 15 to 95% Noncondensing
Transport/Storage Humidity 15% to 95% Noncondensing
Note: Please see the Instruction For Use for complete specification details.
×
Configurations
Part Number
Wireless Radio
Pulse Oximetry
Respiration
Thermometry
Printer
67MCTP-B
Not Included
Masimo® SpO2
Covidien Capnography
SureTemp Plus Thermometry
Internal Printer
67MCTX-B
Not Included
Masimo® SpO2
Covidien Capnography
SureTemp Plus Thermometry
Not Included
67MXEX-B
Not Included
Masimo® SpO2
Not Included
Braun ThermoScan PRO 6000 Thermometry
Not Included
67MXTP-B
Not Included
Masimo® SpO2
Not Included
SureTemp Plus Thermometry
Internal Printer
67MXTX-B
Not Included
Masimo® SpO2
Not Included
SureTemp Plus Thermometry
Not Included
67NCTP-B
Not Included
Nellcor SpO2
Covidien Capnography
SureTemp Plus Thermometry
Internal Printer
67NCTX-B
Not Included
Nellcor SpO2
Covidien Capnography
SureTemp Plus Thermometry
Not Included
67NXEX-B
Not Included
Nellcor SpO2
Not Included
Braun ThermoScan PRO 6000 Thermometry
Not Included
67NXTP-B
Not Included
Nellcor SpO2
Not Included
SureTemp Plus Thermometry
Internal Printer
67NXTX-B
Not Included
Nellcor SpO2
Not Included
SureTemp Plus Thermometry
Not Included
67NXXX-B
Not Included
Nellcor SpO2
Not Included
None
Not Included
68MCTX-B
Included
Masimo® SpO2
Covidien Capnography
SureTemp Plus Thermometry
Not Included
68MXTP-B
Included
Masimo® SpO2
Not Included
SureTemp Plus Thermometry
Internal Printer
68MXTX-B
Included
Masimo® SpO2
Not Included
SureTemp Plus Thermometry
Not Included
68NCTP-B
Included
Nellcor SpO2
Covidien Capnography
SureTemp Plus Thermometry
Internal Printer
68NCTX-B
Included
Nellcor SpO2
Covidien Capnography
SureTemp Plus Thermometry
Not Included
68NXTP-B
Included
Nellcor SpO2
Not Included
SureTemp Plus Thermometry
Internal Printer
68NXTX-B
Included
Nellcor SpO2
Not Included
SureTemp Plus Thermometry
Not Included
×
Accessories and Parts
Barcode Scanner & Printers
103371 Bar Code Reader License
6000-40 Thermal Printer Paper for Connex VSM 6000 Series (10 Rolls)
6000-916HS JADAK Barcode Scanner and Holster Kit
6000-916HSR JADAK Barcode/High Frequency RFID Scanner and Holster Kit
620155 Atlas Printer Paper, VSM6000 (1 Roll / Pack)
7000-HOLSTER JADAK Scanner Holster Kit
Blood Pressure Accessories
2-MQ FlexiPort Tube Set Accessory; Two-Tube, Female Subminiature Connector(s) to FlexiPort Port Adapter
4500-30 Blood Pressure Hose (5.0 ft./1.5 m)
4500-31 Blood Pressure Hose (10.0 ft/3.0 m)
4500-34 FlexiPort Fast Blood Pressure Hose, 5'
4500-35 FlexiPort Fast Blood Pressure Hose, 1O'
5082-178 BP Fitting, Male Locking, 5/32 in. Tubing, 10-Pack
6000-30 One-Tube Blood Pressure Hose (5.0 ft./1.5 m)
6000-31 One-Tube Blood Pressure Hose (10'/3m)
6000-33 One-Tube Neonate Blood Pressure Hose (10ft/3m), use with Neonate Cuffs
Mounting Options
008-0834-01 Vital Signs Monitor 300 Series Wall Mount M-Series Kit
103881 Mounting Plate, with Captive Screw, for Mobile Stand MS2
104644 Connex Vital Signs Monitor 2.0 Extended Wall Mounting Bracket
104645 Connex Vital Signs Monitor Extended Mobile Stand Mounting Bracket
105430 Office LPC Monitor Mounting Kit (Post-Mount Design) - Use with Office Carts
106033 Connex Vital Signs Monitor Standard Chassis ACM Stand Tray Service Kit
106034 Connex Vital Signs Monitor Extended Chassis ACM Stand Tray Service Kit
4700-60 Mobile Stand with Basket
4701-62 Wall Mount with Basket
4800-60 Welch Allyn Accessory Cable Management Mobile Stand with Storage Bin
4800-60WHL Mobile Stand Replacement Caster Kit.
4900-60 Connex Vital Signs Monitor 6000 Series Mobile Stand with Accessory Cable Management and Extended Housing.
4900-62 GCX Wall Mount Bracket with Channel Adjustment and Extended Housing
Power Supplies
53020-0000 Nickel-Metal-Hydride Rechargeable Battery Pack
BATT99 11.1V (6000mA) 9-Cell Lithium-Ion Rechargeable Battery
PWCD-3 Line Cord 3, ISRAEL
PWCD-5 Line Cord 5, Switzerland
PWCD-7 Line Cord 7, South Africa
PWCD-A LINE CORD A, Denmark
PWCD-B Line Cord B, North America
PWCD-C Line Cord C, China
PWCD-G Line Cord G, Argentina
PWCD-K Line Cord K, South Korea
PWCD-N Line Cord N, India
PWCD-P Line Cord P, Thailand
PWCD-T Line Cord T, Taiwan
PWCD-Y Line Cord T, Italy
PWCD-Z Line Cord Z, Brazil
Probe Covers
05075-005 Braun Thermoscan Pro 4000 Disposable Probe Covers, 5000-Pack
RRa Accessories
104770 Masimo Dual Rainbow Cable for Acoustic Respiratory Monitoring
104771 Sensor, Masimo RAS-125 for Acoustic Respiratory Monitoring, 10-Pack
104772 Masimo Dual Cable for Masimo Acoustic Respiratory Monitoring (RRa) and SpO2
UPGHMSWCVSM Welch Allyn Connex Vital Signs Monitor Masimo with Hemoglobin Software Upgrade
SPO2 Accessories
104220 Masimo, DCI SC-360 Adult SpHb Sensor
D-YS Nellcor Dura-Y SpO2 Transducer
D-YSE Nellcor Ear Clip
D-YSPD Nellcor PediCheck Pediatric Fingerclip
DOC-10 Nellcor Extension Cable (10.0 ft./3.0 m)
DS-100A Nellcor DuraSensor Adult Oxygen Transducer with Fingerclip
INF-WRAP-RP Masimo Replacement Wrap Infant Adhesive
LNCS-ADTX Masimo LNCS Disposable Adhesive Finger Sensor - Adult
LNCS-DCI Masimo LNCS Reusable Finger Sensor - Adult
LNCS-DCIP Masimo LNCS Reusable Finger Sensor - Pediatric
LNCS-INF-3 Masimo LNCS Disposable Adhesive Finger Sensor, Infant
LNCS-NEO-L-3 Masimo LNCS Disposable Adhesive Finger Sensor, Neonate/Adult
LNCS-PDTX Masimo LNCS Disposable Adhesive Finger Sensor - Pediatric
LNCS-TC-I Masimo LNCS Reusable Ear Sensor
LNCS-YI Masimo LNCS Multisite Reusable Sensor
MAX-AI Nellcor OxiMax Adult Finger Sensor, 24-Pack
MAX-II Nellcor OxiMax Infant Toe Sensor, 24-Pack
MAX-PI Nellcor OxiMax Pediatric Finger Sensor, 24-Pack
NEO-WRAP-RP Masimo LNCS Replacement Wrap for Neonatal Adhesives, 100-Pack
OXI-A/N Nellcor OxiBand Adult/Neonatal Transducer
OXI-P/I Nellcor OxiBand Pediatric/Infant Transducer
RED LNC-04 SPO2 Cable, LNCS, Masimo, Mini-D, 20P, 4'
RED LNC-10 Masimo Rainbow SET 10' Cable with MINI-D Connector (20 pin)
SRC-MAX Nellcor Portable Oximetry Tester (MP506)
UPGMASCVSM Welch Allyn Connex Vital Signs Masimo SPO2 Upgrade
UPGNELCVSM Welch Allyn Connex Vital Signs Monitor Nellcor SPO2 Upgrade
YI-AD Masimo LNCS Multisite Adhesive Wrap, 100-Pack
Thermometry
1802-110 Thermometer Calibration Tester
02894-0000 Welch Allyn SureTemp Plus Oral/Axillary Probe Well for Monitors; Blue
02894-1000 Welch Allyn SureTemp Plus Rectal Probe Well for Monitors; Red
02895-000 Probe Well Kit, OEM, Oral, 9'. Includes: probe, probe well
02895-100 Probe Well Kit, OEM, Rectal, 9'. Includes: probe, probe well
05031-750 Probe Covers for SureTemp, Disposable, 7,500-Pack
06138-000 Calibration Key with Calibration Certificate
86100 Braun Pro 4000 Dock Wall Mount Kit
86200 Braun Pro4000 Dock Mobile Stand Kit
UPGSTPCVSM Welch Allyn Connex Vital Signs Monitor Suretemp Upgrade
Others
103372 Spot Profile License
103373 TriageProfile License
103549 VSM 6000 18 in. Ethernet Cable
103563 Plfm USB Cable 12.5 in. Mini-USB B Right-to-Type A Right Cable
4500-925 Connectivity Accessory Kit; USB Cable 2.0/5-Pin Mini-B,Gold,10' (304.8cm)
6000-101H Connex Vital Signs Monitor 6000 Series Hard Sided Carrying Case.
6000-50 Connex Vital Signs Monitor USB Configuration Memory Stick
6000-NC VSM 6000 Nurse Call Cable
660-0138-00 RJ45 Patch Cable, 5 ft. (1.52 m)
×
Documentation Links
Assembly Instructions
Brochure
Comparison Sheet
Configuration Sheet/Tool
Installation Guide
Quick Reference Guide
Blood Pressure Accuracy and Variability, Quick Reference Guide
Braun PRO 4000 Thermometer and Dock Cleaning Instructions, Quick Reference Guide
Connex Vital Signs Monitor, Startup Guide
Connex Vital Signs Monitor, 1.7X, Quick Reference Guide
Connex with EarlySense Monitoring, Quick Reference Guide
Connex Vital Signs Monitor, 2.2, Quick Reference Guide
Welch Allyn Connex Devices, 2.3X, Quick Reference Guide
Digital Device Replacement Blood Pressure Cuff, Quick Reference Guide
BP Accuracy Variability Quick Reference Guide
Reference
Service Manual
Service and Maintenance Toolset
Specification Sheet
Startup Guides
User Manuals
×
Services
S1-6000 1 Year Comprehensive Partnership Service Agreement
S1-6000C 1 Year Comprehensive Partnership Service Agreement with Annual Preventive Maintenance/Calibration
S1-6000-2 2 Year Comprehensive Partnership Service Agreement
S1-6000-2C 2 Year Comprehensive Partnership Service Agreement with Annual Preventive Maintenance/Calibration
S1-6000-5 5 Year Comprehensive Partnership Service Agreement
S1-6000-5C 5 Year Comprehensive Partnership Service Agreement with Annual Preventive Maintenance/Calibration
S2-6000 1 Year BioMed Partnership Program Service Agreement
S2-6000-2 2 Year BioMed Partnership Program Service Agreement
S2-6000-5 5 Year BioMed Partnership Program Service Agreement
VSM6000SERREPW-TRN Connex Vital Signs Monitor Online Technical Service and Repair Training
