Rally #46-1-9370
Baxter / Hillrom / Welch Allyn #93700
Welch Allyn MicroTymp 4 Portable Tympanometer (1/EA)
MicroTymp 4 Portable Tympanometer System with Printer, Includes MicroTymp 4 Hand Set, Charging Cradle, Power Supply, Ear Tip Starter Kit, 4-volume test cavity, Probe Tip Cleaning Kit, Serial Printer Cable, USB Data Cable, MPT-II Printer Kit, USB Thumb Drive with DFUs and TympView Software
Features
- Supports tympanometry and ipsilateral acoustic reflex measurement testing
- Automatically begins recording a tympanogram as soon as the ear canal seal is obtained
- Test patients six months of age and up
- Four-button navigation supports a quick, complete exam in L, R or both ears
This device is intended to be used in a hospital, clinic or other healthcare facility with a suitable quiet testing environment such as a private exam room.
Note: For medical professional use only.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Warning: Product is considered HAZMAT and cannot ship via Air or to AK, GU, HI, MP, PR, VI.
Rally # | 46-1-9370 |
Manufacturer # | 93700 |
GTIN | 00732094300659 |
Brand | MicroTymp® |
Manufacturer | Baxter / Hillrom / Welch Allyn |
Country of Origin | Unknown |
Application | Portable Tympanometer |
Power Source | Battery Operated |
Type | Tympanometer System with Printer |
UNSPSC Code | 42182416 |
Patient Age | 6 months of age and up |
Warranty | One Year Warranty |
Instrument Type | Meatus Compensated Tympanometer |
Analysis Performed | Admittance Peak Level (in ML); Pressure of Same; Gradient (in daPa); Ear Canal Volume (ECV) @ 200 daPa |
Probe Tone – Levels & Accuracy | 8226Hz +/- 2%; 85dB SPL +/-2dB over range 0.2ml to 5ml |
Pressure – Levels & Accuracy | +200daPa to -400daPa +/-10daPa or +/-10% (whichever is larger) over range |
Ear Volume – Measurement Range & Accuracy | 0.2ml to 5ml +/- 0.1ml or +/-5% (whichever is larger) over entire range |
Measurement Mode | Ipsilateral |
Reflex Tones | 500Hz, 1kHz, 2kHz, 4kHz |
Reflex Analysis | Reflex pass/fail at each level tested; maximum amplitude of each reflex (seen on printed report & computer report); pressure at which reflex was performed |
Test Capture | Up to 100 recordings on a full charge |
Test Storage | Up to 32 test records |
Battery | NiMH rechargeable battery pack. Not user replaceable |
Mains Power (to cradle) | 100-240Vac; 50/60Hz; 0.2A |
Warm-up Period | None at room temperature |
Display | 128 x 64 pixels / 8 lines of 21 characters |
Dimensions | 230mm (L) x 115mm (W) x 70mm (H) |
Weight (device and cradle) | 650 grams / 1.43 pounds |
Operating Temperature Range | +15 °C to +35 °C |
Operating Humidity Range | 30% to 90% RH, non-condensing |
Operating Atmospheric Pressure Range | 980 to 1040 mb |
Transport & Storage Temperature Range | +5 °C to +40 °C |
Transport & Storage Humidity Range | 30% to 90% RH, non-condensing |
Transport & Storage Atmospheric Pressure Range | 900 to 1100 mb |
Supported Printer | MPT-II |
Interface | Wired Connection to Cradle |
Information Printed |
|
For printer paper, please see the Accessories and Parts section.
Configurations
93700 | MicroTymp 4 Portable Tympanometer System with Printer |
93700-NP | MicroTymp 4 Portable Tympanometer System without Printer |
93701 | MicroTymp 4 Portable Tympanometer Handset Only |
Consumables and Accessories
Part Number | Description |
39407 | MPT-II Printer Power Supply |
39410 | MPT-II Printer Set |
39412 | MPT-II Printer Paper, Single Roll |
39414 | OAE & MicroTymp 4 USB Cable |
93710 | MicroTymp 4 Charging Cradle |
93715 | MicroTymp 4 Charging Cradle Power Supply |

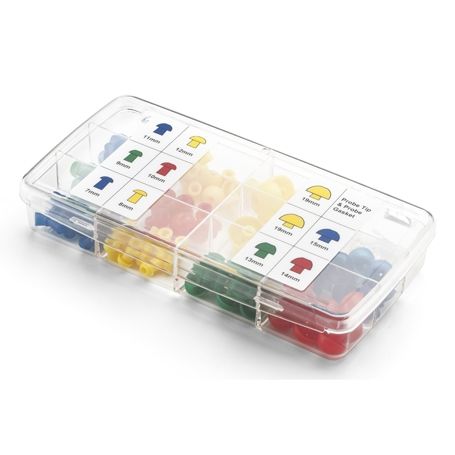

93720 | MicroTymp 4 Eartip/Probe Tip Starter Kit |
93730 | MicroTymp 4 Probe Floss Cleaning Kit |
93740 | MicroTymp 4 Probe Tip And Gasket Kit |
93750 | MicroTymp 4 Test Cavity |
93760 | MicroTymp 4 Carry Case |
93771 | MicroTymp 4 Serial Printer Cable |
Ear Tips – Single Use
Part Number 25/Box |
Part Number 100/Box |
Description |
39422-07-025 | 39422-07-100 | 7 mm mushroom style disposable ear tips |
39422-08-025 | 39422-08-100 | 8 mm mushroom style disposable ear tips |
39422-09-025 | 39422-09-100 | 9 mm mushroom style disposable ear tips |
39422-10-025 | 39422-10-100 | 10 mm mushroom style disposable ear tips |
39422-11-025 | 39422-11-100 | 11 mm mushroom style disposable ear tips |
39422-12-025 | 39422-12-100 | 12 mm mushroom style disposable ear tips |
39422-13-025 | 39422-13-100 | 13 mm mushroom style disposable ear tips |
39422-14-025 | 39422-14-100 | 14 mm mushroom style disposable ear tips |
39422-15-025 | 39422-15-100 | 15 mm mushroom style disposable ear tips |
39422-19-025 | 39422-19-100 | 19 mm mushroom style disposable ear tips |
