Rally #52-4-1692
Baxter/Hillrom/Welch Allyn #01692-200

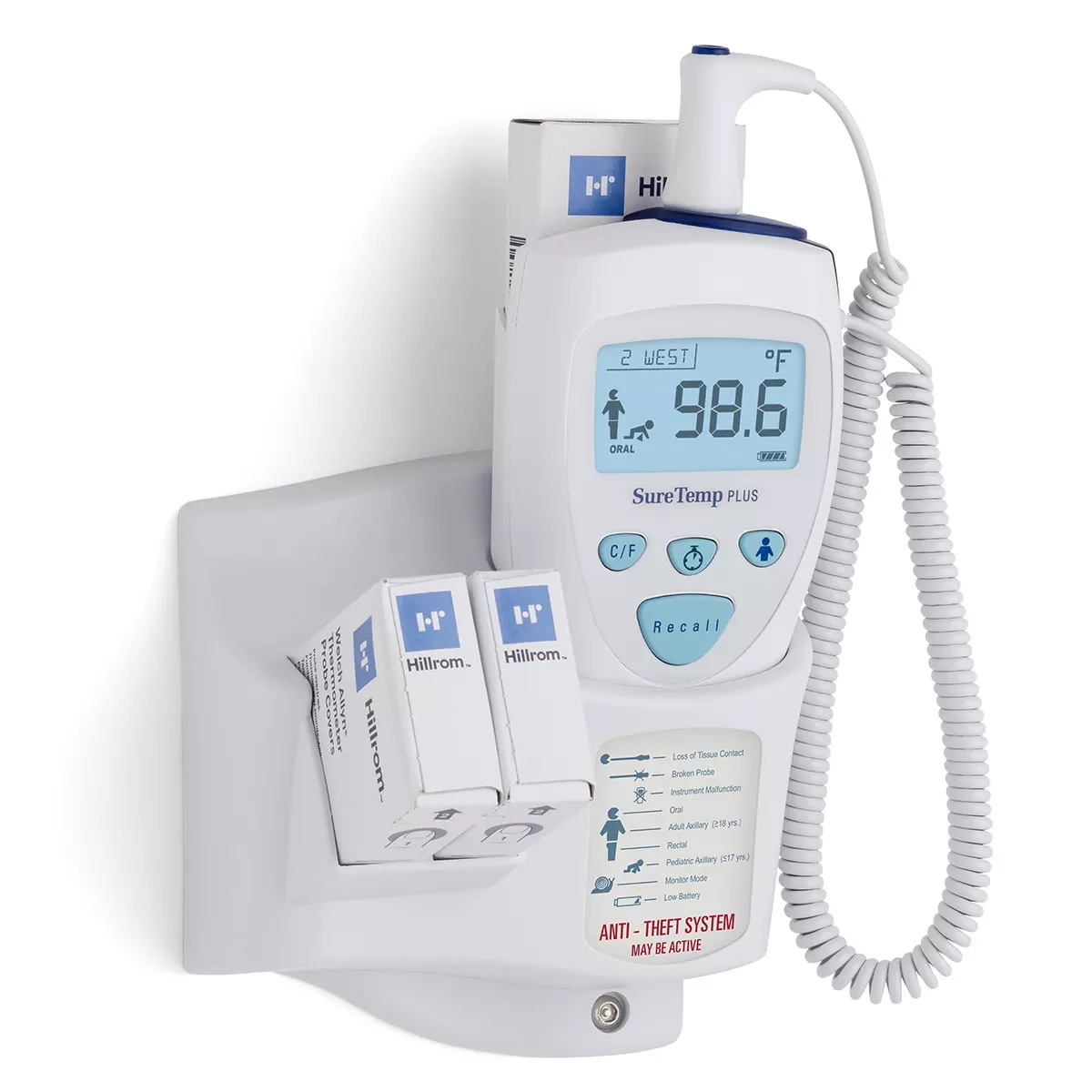

Welch Allyn SureTemp Plus 692 Thermometer (1/EA)
Welch Allyn SureTemp Plus 692 Wall-Mount Electronic Thermometer with Interchangeable Oral Probe Well, Oral Probe with 4.0 ft/1.2 m Cord, Last Temperature Recall, 60-Second Pulse/Respiration Timer, Backlit Display with Electronic ID, Anti-Theft Security System; 3 Alkaline AA Batteries, provides 4-6 Second Oral, 10-13 Second Pediatric Axillary, and 12-15 Second Adult Axillary Temperature Readings in Fahrenheit or Celsius.
Features
- Large LCD displays in Fahrenheit or Celsius
- Convenient storage for 25 probe covers
- Last temperature recall button
- Security wall mount protects against theft
- Captures about 6,000 readings on 3 AA batteries
- Approximately 4-6 second oral readings, 10-13 second pediatric axillary and rectal readings and 12-15 second adult axillary readings.
It is intended to be used by healthcare professionals only; typically, in a hospital, clinic, long-term care, or mobile health care environment. The Thermometer is not intended for home use.
Diference between Model 690 and 692:
The Welch Allyn SureTemp Plus 692 Thermometer contains the same features as the Welch Allyn SureTemp Plus 690 Thermometer, but also includes a wall mounting bracket, 60-second timer for counting pulses and respirations, backlit display, configurable on-screen labeling for instrument identification and electronic security options to help prevent theft.
For the State of California:
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
×
| Rally # | 52-4-1692 |
| Manufacturer # | 01692-200 |
| GTIN | 00732094028980 |
| Brand | SureTemp |
| Manufacturer | Baxter / Hillrom / Welch Allyn |
| Country of Origin | Unknown |
| Application | Electronic Probe Thermometer |
| Equipment Classification | Internally Powered Device, Continuous Operation Not AP or APG Equipment |
| Display Type | LCD Display |
| Measuring Scale | Fahrenheit / Celsius |
| Mounting Type | Wall Mount |
| Applied Part | Thermometer Probe |
| Probe Type | Oral Probe |
| Probe Cord Length | 4.0 ft (1.2 m) |
| Calibration Accuracy | ±0.2 °F (±0.1 °C) (Monitor Mode) |
| Operating Altitude | -557 ft. to +16,000 ft / -170m to +4877m |
| Temperature Predict Time | Oral: Approximately 4-6 seconds Adult Axillary (18 years and older): Approximately 12 - 15 seconds Pediatric Axillary (17 years and younger): Approximately 10 - 13 seconds Rectal: Approximately 10 - 13 seconds |
| Unit Dimensions | 8.46" x 3.18" x 2.43" (215 mm x 81 mm x 62 mm) |
| Weight | 12.6 oz (357 g) |
| Ambient Temperature Range | 50.0 °F (10 °C) to 104 °F (40.0 °C) |
| Patient Temperature Range | 80.0 °F (26.7 °C) to 110 °F (43.3 °C) |
| Power Source | (3) 1.5 Vdc AA batteries [Included with Unit] |
| Battery Life | Approximately 6,000 temperatures |
| Transport/Storage Temperature | -13°F to +131°F (-25°C to +55°C) |
| Humidity | 15% to 95% non-condensing |
| IPXØ | Not protected against the ingress of water. |
| UNSPSC Code | 42182201 |
| Warranty | Three-year Limited Warranty |
